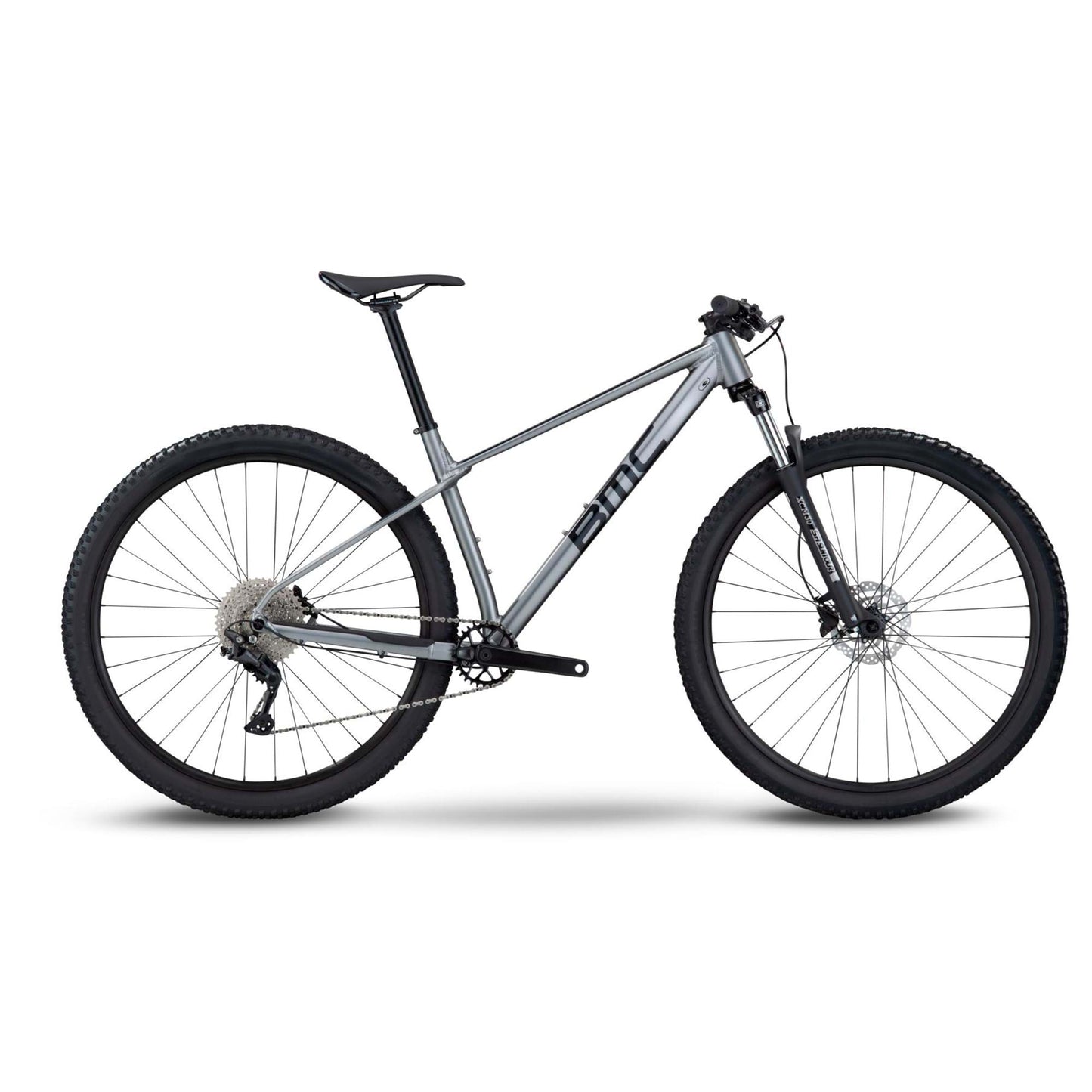

Designed to take you far.

FEATURES

• RADICAL GEOMETRY: A 67˚ head angle, long front-end and 75° seat angle to attack steep and loose terrain with the perfect weight distribution.
• INTERNAL CABLE ROUTING: Fully guided internal cable routing for easy installation and a clean look.
• INTEGRATED PROTECTION: Molded covers on the chainstay, an integrated chain suck plate and helicopter tape on the downtube ensure durability and a sleek design.
• WIDE TIRE CLEARANCE: Fully compatible with the new generation of wide XC tires.

SPECS
FRAME: Twostroke AL Premium Aluminium, Hydroformed, Smoothwelded

• Internal Cable Routing
• BSA Threaded Bottom Bracket
• Post Mount Disc

GEARS: 1x10
CHAINWHEEL: Lightweight Forged Alloy Cranks 30T 1x Specific Narrow Wide Chainring
CASSETTE: SUNRACE 11-42T
CHAIN: KMC 10 spd
REAR DERAILLEUR: SHIMANO Deore 10 spd
SHIFTERS: SHIMANO Deore 10 spd
BRAKES: SHIMANO BR-MT200 / SHIMANO SM-RT30 Rotors (160/160 S-M, 180/160 L-XL)
HANDLEBAR: Alloy 760mm
STEM: Forged 6061 Alloy
SEATPOST: Alloy 31.6mm - 0mm Offset
SADDLE: Selle Royal Seta
HUBS: SHIMANO RM35 / MT400
RIMS: XCD23
TIRES: WTB Ranger Comp 2.25"
TIRE CLEARANCE: 58mm (Measured Width)
WEIGHT LIMIT: 110 kg
ASTM CLASSIFICATION: Level 3
CONFIGURABLE: No
FRAMESET OPTION: No
